3/16″ Shackle – SK-188

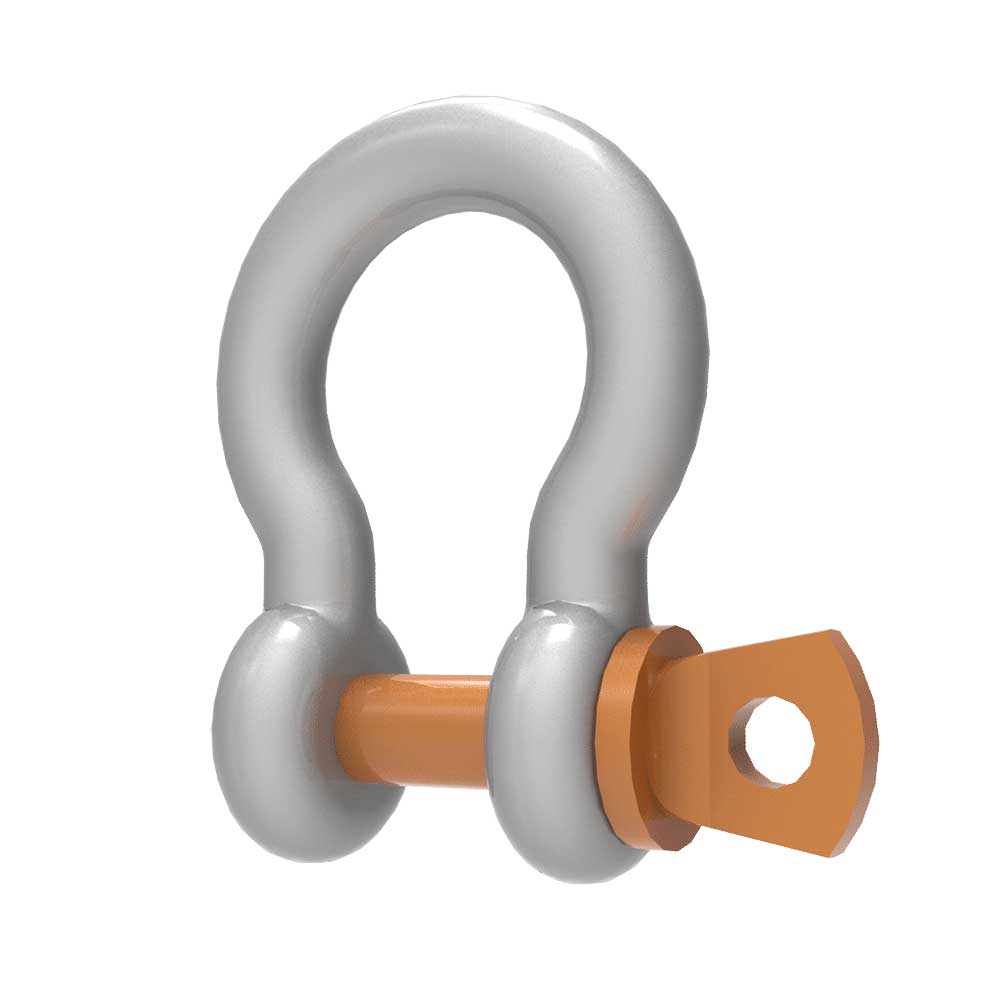

667lb Silver Screw Pin Anchor Shackle

The screw pin version of shackle is ideal for the joining of two closed-end items together, such as wire rope assemblies, turnbuckles and eyebolts. The small hole in its pin offers a back up safety feature by securing a wire or cable tie through the holes and around the body of the shackle. This prevents the pin from loosening through vibration and is known as “mousing” the shackle. Shackles are rated for overhead suspensions because of this redundant locking feature and the radius portion of their body structurally accommodates three way bridles.

Category:
Downloads
Standard Features
Specifications
Dimensions
Optional Accessories
Videos

Downloads

Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader

Standard Features

  • Join two closed-end items together, such as wire rope assemblies, turnbuckles and eyebolts quickly and easily.

Specifications

SPECIFICATIONS PACKAGE CONTENTS
Diamter: 3/16″ 1 pc Shackles
Color: Silver
Design Factor: 6:1
WLL: 667 lb / 303 Kg

Dimensions

Optional Accessories

  • See wire rope datasheets
