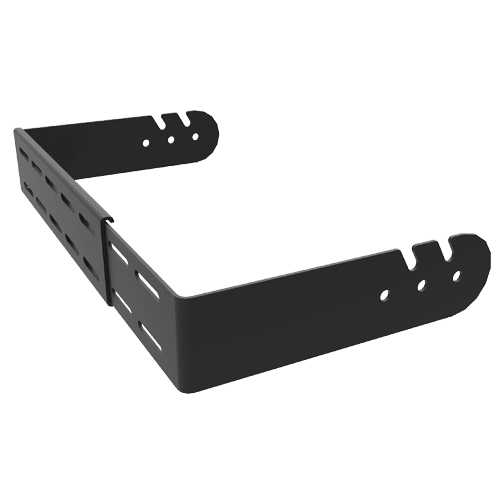

85lb Adjustable Width Wall & Ceiling Speaker Mount

Adjustable Loudspeaker Mounting Kits support most of the mountable loudspeakers in the 85 lbs./38 kg. range, or less and its open side arm slots allow a single installer to easily mount loudspeakers in this weight range. Loudspeakers can be rotated within the arms to acquire the desired tilt angle. Separate side holes permit the angle of the speaker to be locked permanently using lag bolts. Since there are only two sizes, inventory requirements are minimal.

Fully captive arm holes permit safe, secure mounting of loudspeakers under balconies, overhangs and from ceilings. The brackets’ base gives installers multiple options for placing speakers over irregular and unpredictable mounting surfaces because of its unique mounting slot pattern.


Standard Feature
Optional Accessories


Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader

Standard Feature

  • Packed in pairs
  • Two models support most loudspeakers, weighs 85 lbs/36 kg. or less
  • Compatible with
  • 16” and 24” hole centers match wall studs.
  • Open arm slots for one man installation.
  • Sound isolation gaskets block sound
    transmission through walls.
  • Permanent angle set capable.


Material: Structural Steel Alloy Includes an assortment of 1/4”, 5/16” and 3/8” bolts and hardware plus two 1/4” thick sound isolation gaskets.
Down Tilt: Up to 60 degrees
Finish: Powder Coat
Color: Black
WLL: 85 lbs/38.6 Kg
Design Factor: 7:1 ratio


Optional Accessories

  • UB-M06-BC hardware
  • UB-M08-BC hardware
  • UB-M10-BC hardware
