Beam Clamp – BC12-17
Channel Style With One Suspension Point

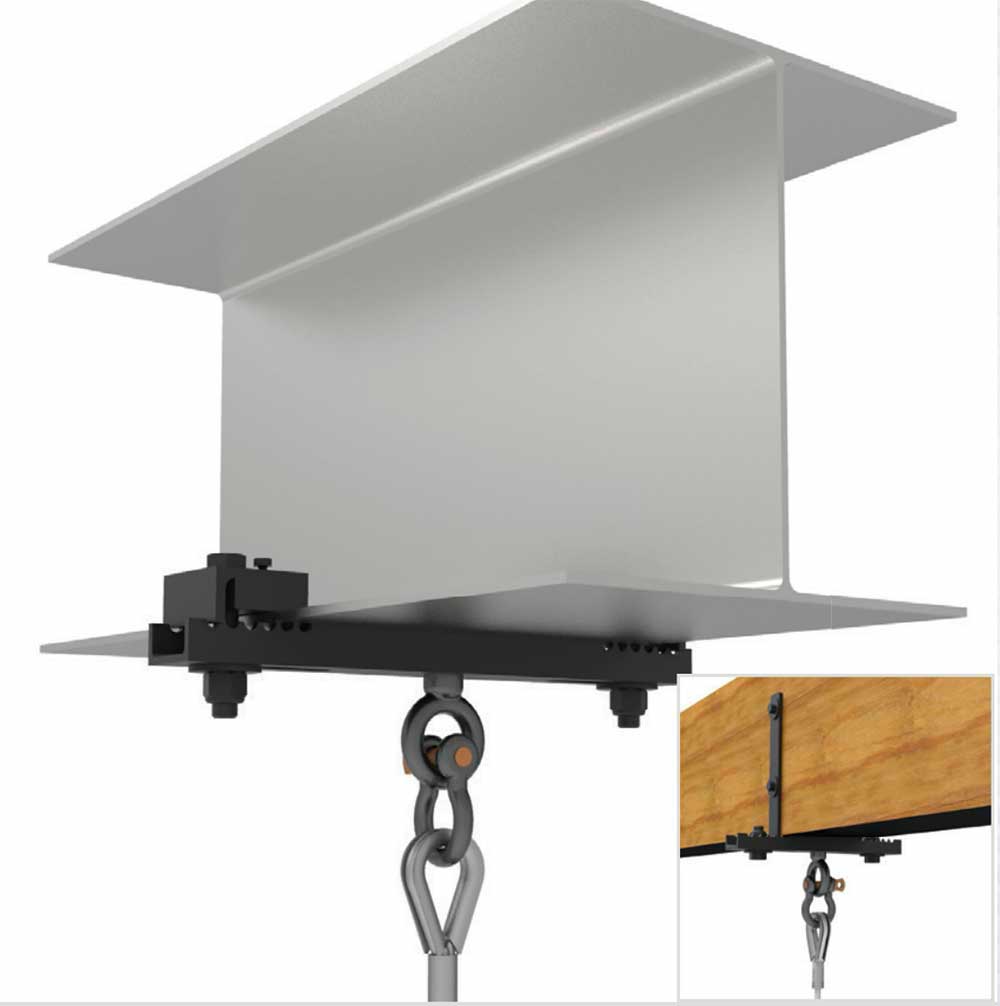

Standard, pre-engineered channel style beam clamps anchor to a building’s structure and offer a safe and predictable method of rigging grids, clusters, arrays and other objects from overhead. This channel style beam clamp is adjustable and mounts flush underneath the building’s I-Beams flanges. It comes equipped with a centrally located rigging point for suspending objects from wire rope, rigging chain, spansets, etc.

Use one of two channel style beam clamps to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 12” 17”(305mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor to achieve the stated working loads.

Key Features
Optional Accessories


Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader

Key Features

  • Single load-rated center hang point
  • Provides safe load-rated hang point to 45° off center.
  • Two models secure to beam flanges ranging from 12” – 17” / 305mm to 432mm


Materials: All Steel Components 1 pc Beam Clamp Channel
Width: (BC12-17) 12” to 17” / 305mm to 432mm 1 pc Locking Angle Plate
Finish: Powder Coat 2 pcs  Flat Washer, 5/8”
Color: Black 2 pcs Nyloc Nut, 5/8-11
WLL: 980 lb / 445 Kg WLL (VERTICAL) on metal beams and 300lb / 136kg max on wooden beams 2 pcs 1/4” spacer
Design Factor: 5:1 2 pcs 1/2” spacer
45 DEG. WL: 578 lb / 261 Kg 2 pcs 1.00” spacer
DO NOT EXCEED 45° off hang points

Optional Accessories

  • See Wire Rope Datasheets
  • See Rigging components Datasheets
  • BC-LAM-KIT for wooden beams
