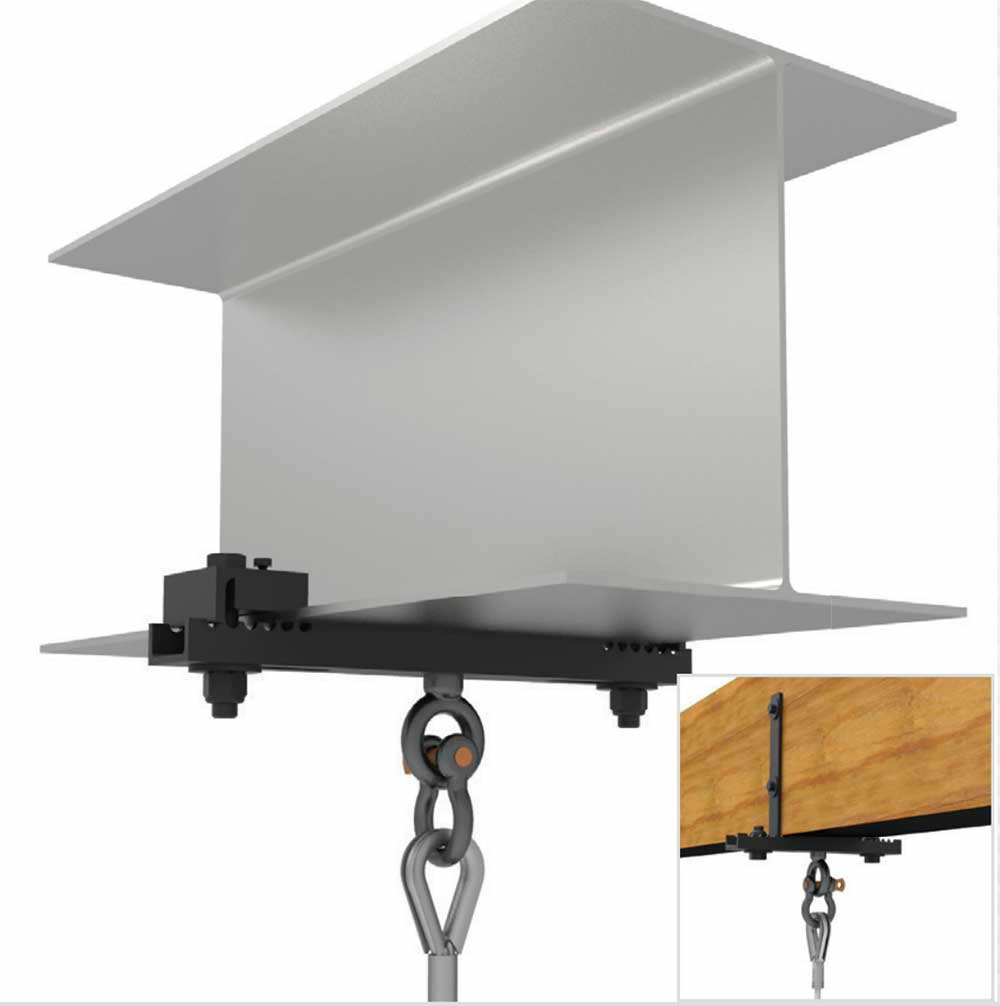

Standard, pre-engineered channel style beam clamps anchor to a building’s structure and offer a safe and predictable method of rigging grids, clusters, arrays and other objects from overhead. This channel style beam clamp is adjustable and mounts flush underneath the building’s I-Beams flanges. It comes equipped with a centrally located rigging point for suspending objects from wire rope, rigging chain, spansets, etc.
Use one of two channel style beam clamps to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 3” 12”(305mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor to achieve the stated working loads.
|Material: All Steel Components||1 pc Beam Clamp Channel|
|Width: (BC7-12) 7” to 12” / 178mm to 305mm||1 pc Locking Angle Plate|
|Finish: Powder Coat||2 pcs Flat Washer, 5/8”|
|Color: Black||2 pcs Nyloc Nut, 5/8-11|
|WLL: 1600 lb / 725.7478 Kg (VERTICAL) on metal beams and 300lb / 136kg max on wooden beams|
|Design Factor: 5:1|
|45 DEG. WL: 1280 lb / 580.5982 Kg|
|DO NOT EXCEED 45° off hang points|
