AMFS-1X2-60
300lb Adjustable Modular Flying System

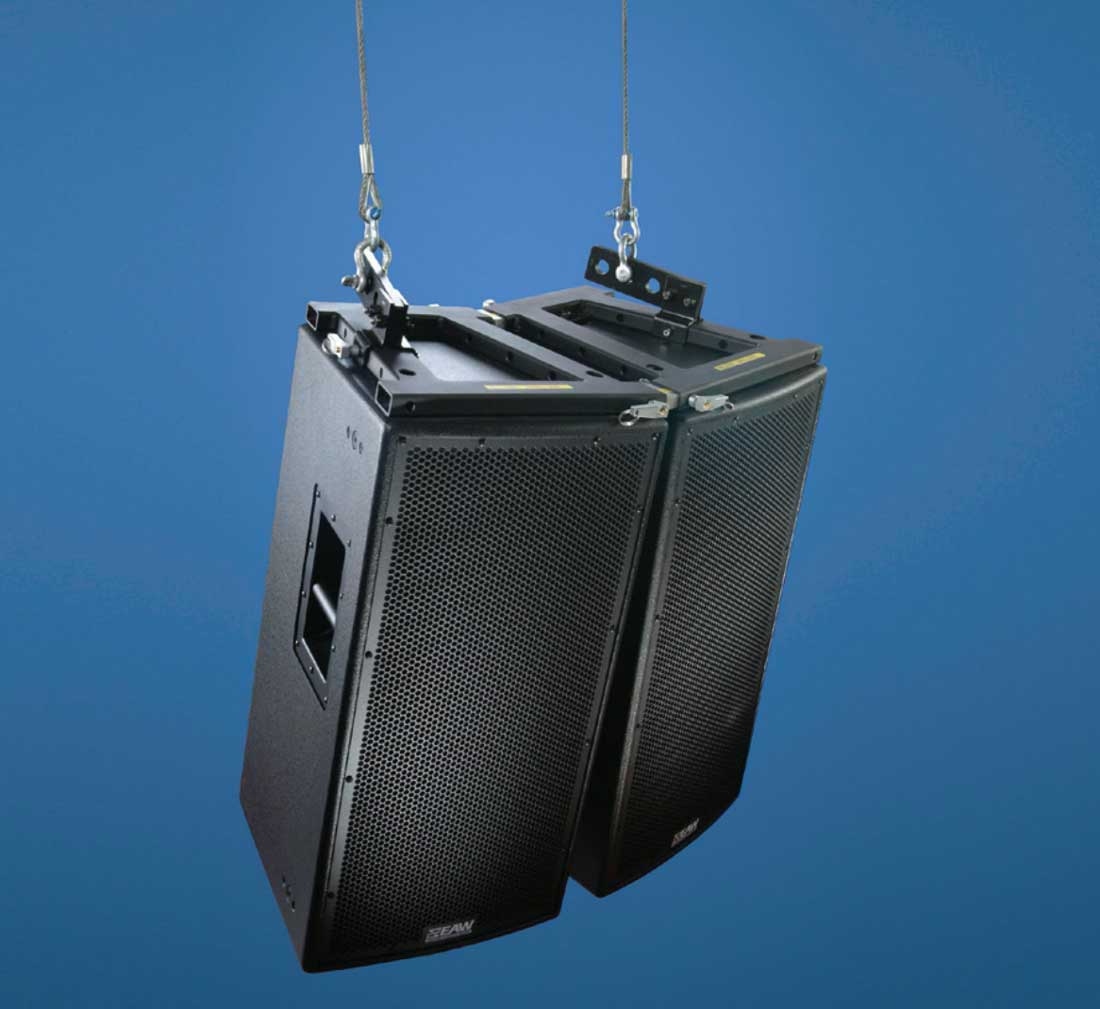

The AMFS 1 X 2 modular loudspeaker rigging system is used for light-weight live-sound and touring applications where full clusters of loudspeakers can be set up and flown in just minutes. This method of connecting loudspeakers together provides the installer with a rapid assembly and disassembly process for setting up and aiming sound at any venue for performances at live shows, convention centers and touring applications.

At the heart of the AMFS system is its load rated truss module, which is built from rugged tubular steel alloy frames using certified weld processes then finished with a hardy, baked-on black textured powder coat. They are designed to anchor to the top and bottom of specific loudspeaker cabinets and serve as highly reliable suspension devices. When used with other components, such as connecting bars and stacking brackets, loudspeakers can be linked together in horizontal and vertical configurations.

Horizontal clustering is achieved through pre set angles connecting bars, which are available in 5° increments starting a 0°, all the way to 70°. Vertical stacking is accomplished through the system’s stacking bracket component.

Category: Tag:
Downloads
Standard Feature
Specifications

Downloads

Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader

Standard Feature

  • Joins speakers together horizontally and vertically
  • Creates adjustable planar arrays
  • Quick setup and dismantling
  • Safe load-rated components
  • Design per specific speaker model

Specifications

Material: Tubular steel alloy
Finish: Textured powder coat
Color: Black
WLL: 300 lbs max
Design Factor: 5:1 ratio
Pack Count: 1/carton (hardware included)
*WLL = Working Load Limit
