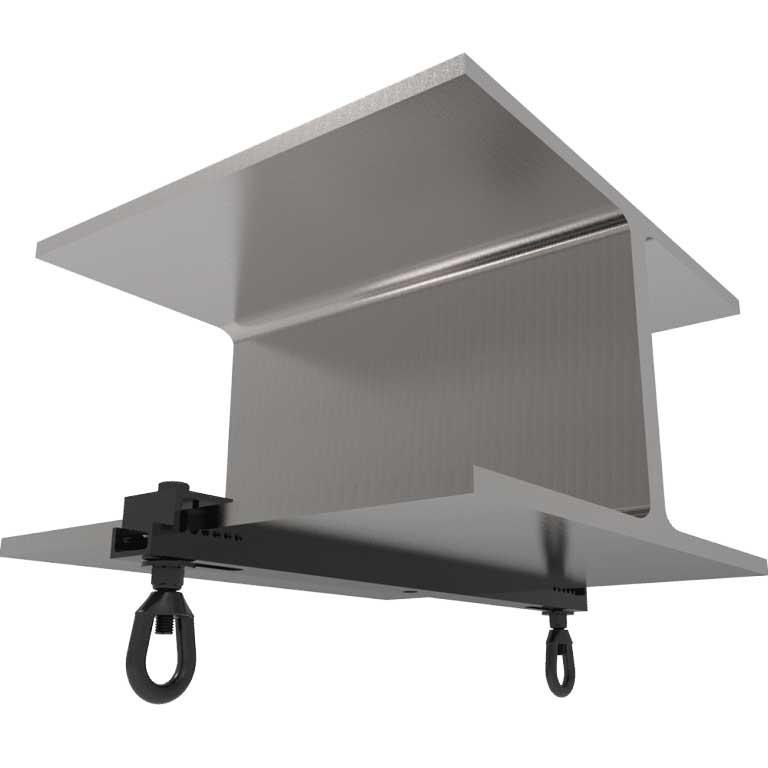

Provides two offset load rated rigging points from structural I-Beams with flange widths ranging between 20” and 26” (508-660.4 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is required to secure the clamp to the beam. *IMPORTANT – Beam flanges must be parallel to the floor to achieve the stated safe working loads.
NOTE: Recommended torque = 40-50 ft/lb
|Material: All Steel Components||2 pcs 5/8” eye nut|
|Width:(BC20-26-2) 20” to 26”||1 pc Channel Clamp|
|WLL:600 lb / 272 Kg WLL (VERTICAL)|
|Finish: Powder Coat|
|Design Factor: 5:1|
|45 DEG. 354 lb / 161 Kg|
