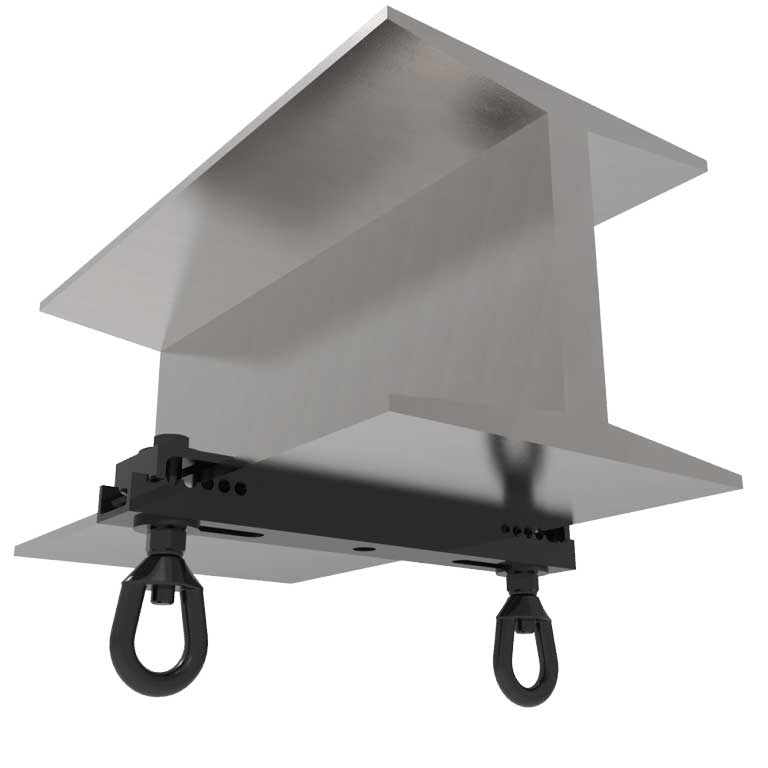

Use the BC7-12-2 channel style beam clamp to provide an offset load rated overhead rigging point from structural I-Beams with flange widths ranging between 7” and 12” (178-305mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is required to secure the clamp to the beam. Beam flanges must be parallel to the floor to achieve the stated safe working loads.
NOTE: Recommended torque = 40-50 ft/lb
|Material: All Steel Components||2 pcs 5/8” eye nut|
|Width:(BC7-12) 7” to 12” / 178mm to 305mm||1 pc Channel Clamp|
|WLL:1600 lb / 726 Kg WLL (VERTICAL)|
|Finish: Powder Coat|
|Design Factor: 5:1|
|45 DEG. WL:944 lb / 428 Kg|
