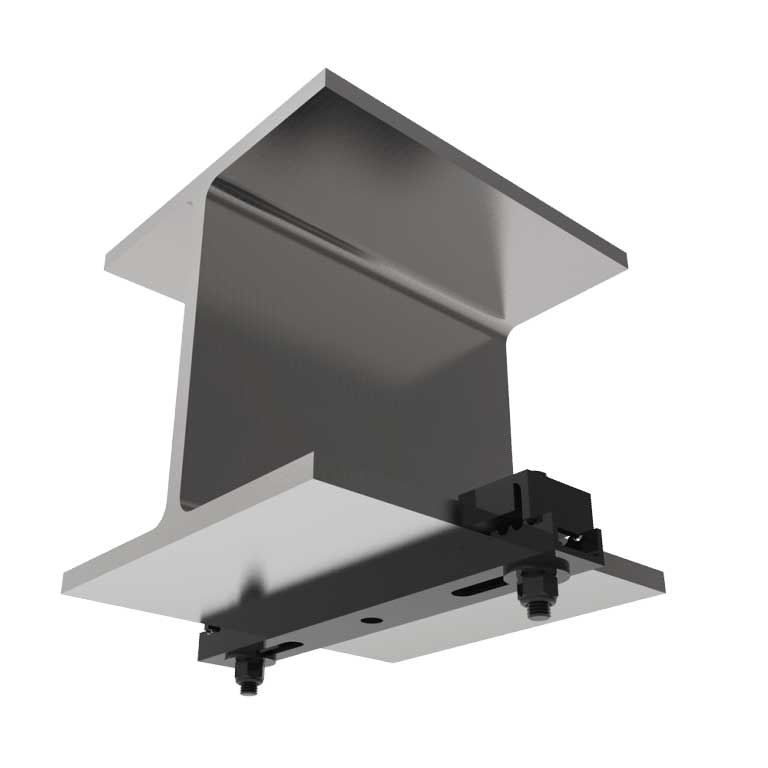

Beam Clamp – BC7-12-0
7 to 12 inch Open Hang Point

Use the BC7-12-0 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 7” and 12” (178-305mm ). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.

NOTE: Recommended torque = 40-50 ft/lb

Downloads
Standard Features
Specifications
Dimensions
Optional Accessories
Videos

Downloads

Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader

Standard Features

  • Single center hang points for 1/2″ to 5/8″ dia. threaded rod.
  • Provides safe load-rated hang points
  • Clamps securely to beam flanges ranging from 7″ – 12″

Specifications

SPECIFICATIONS PACKAGE CONTENTS
Material: All Steel Components 1 pc 7”-12” Beam Clamp Channel
Width:(BC7-12-0) 7” to 12” 2 pcs Locking Angle Plate
 WLL:1600 lbs / 726 Kg.  2 pcs Flat Washer, 5/8”
 Finish: Powder Coat  2 pcs Nyloc Nut, 5/8-11
 Color: Black
 Design Factor: 5:1
Shipping Weight: 5.21 lb / 2.3 Kg

Dimensions

Optional Accessories

  • See Threaded Rod datasheets
  • See Rigging components datasheets
