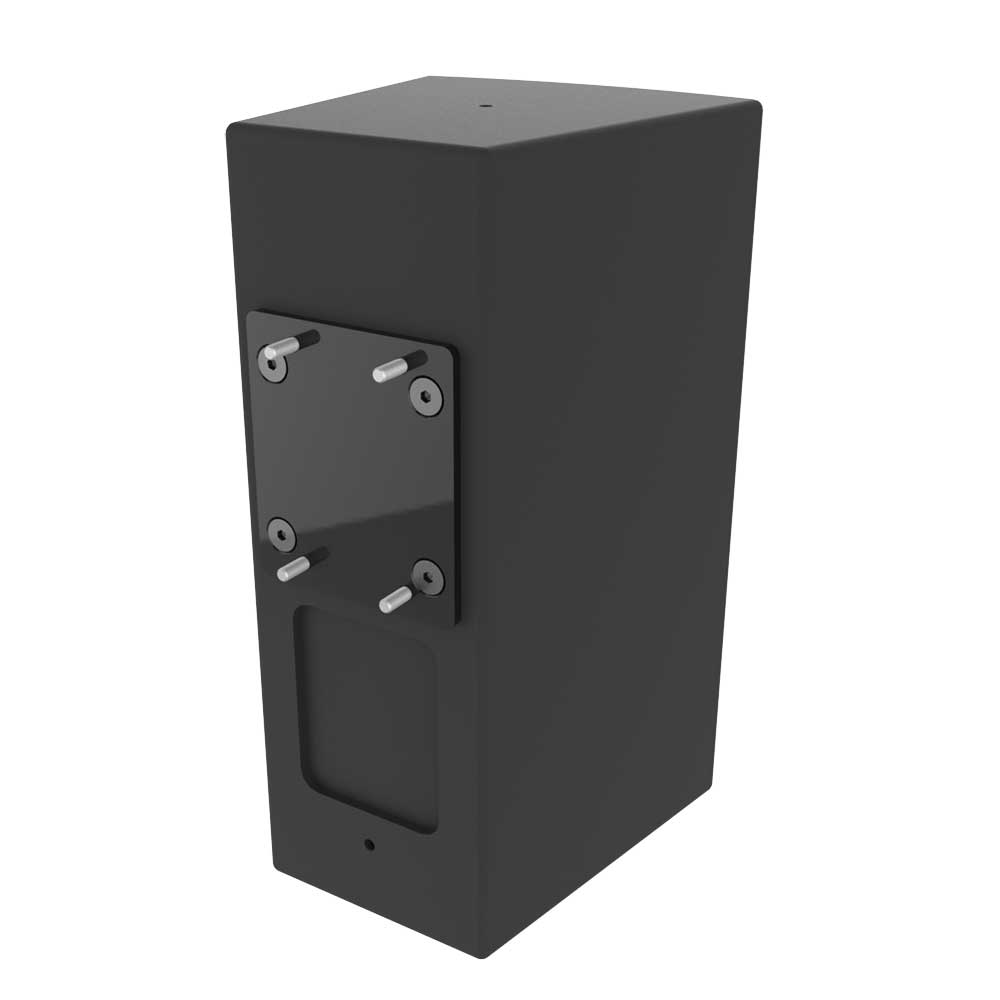

Use this adapter for mounting speakers with the 100X100mm square mounting hole pattern to the rectangular hole pattern of the MultiMount. The adapter first receives the 5/16” screws in the rectangular hole pattern then is attached to the loudspeaker using the included metric screws. That means that the 5/16” screws are protruding out and the last step is to secure the MultiMount over the protruding 5/16” screws using the included flat washers and locking nuts.
Datasheet InstallationPDF Reader| SPECIFICATIONS | PACKAGE CONTENTS |
| Material: StructuralSteel Alloy | 1 pc Adapter Plate |
| Finish: Powder Coat | 4 pcs 5/16” x 1” Screws |
| Color: Black | 4 pcs M10X40mm Screws |
| WLL:60 lbs. (27.2 Kg) max | 4 pcs 5/16” Flatwasher |
| Design Factor: 10:1 | 4 pcs 5/16” Nyloc Nuts |
