SAS-086-RB
86” Rigging Beam

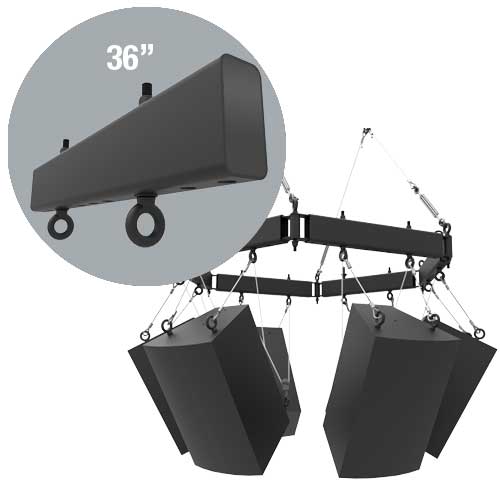

The GridLink™ Rigging Beam System provides the foundation for building quick and reliable loudspeaker suspension grids and speaker bars using predictable load-rated, modular and off-the shelf components.

GridLink™ Rigging Beams are comprised of standard length beams and beam connectors. The GridLink™ connectors act as a heavy-duty beam couplers and load-rated suspension point. In addition, they pivot horizontally to create a wide variety of angles, grid sizes and shapes including rectangles, squares, hexagons and triangles.

SKU: SAS-086-RB Categories: ,
Downloads
Standard Features
Specifications/Package Contents
Dimensions
Optional Accessories
Videos

Downloads

Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader

Standard Features

  • Modular approach to Rigging
  • Quick set up and predictable Installs
  • Off the shelf, ready-to-ship to the job site
  • Multiple tier capable
  • Comes with 1/2” Ø Eye Bolts & Eye Nuts

Specifications/Package Contents

Material: Structural Steel Alloy 1 pc 86” Rigging Beam
Finish: Powder Coat 2 pcs 1/2” Eye Bolt Kits
Color:: Flat Black 2 pcs 2 Eye Nut Kits
WLL:Single Point 233 lb. / 106 Kg
Double Point 133 lb. / 60 kg
Four Point 83 lb. / 38 kg.
2 pcs 1/2” End Caps

Dimensions

RB-86


sas-086-rb-drawing-1


sas-086-rb-drawing-3


sas-086-rb-drawing-4

Optional Accessories

Model # Description WLL: lbs/kg
SAS-GL SAS-GL GridLink™ Connector kit 2200/1000
SAS-GLT SAS-GLT GridLink™ T-Connector kit 2200/1000
SAS-100-CA SAS-100-CA GridLink™ Cross Arm kit 300/136

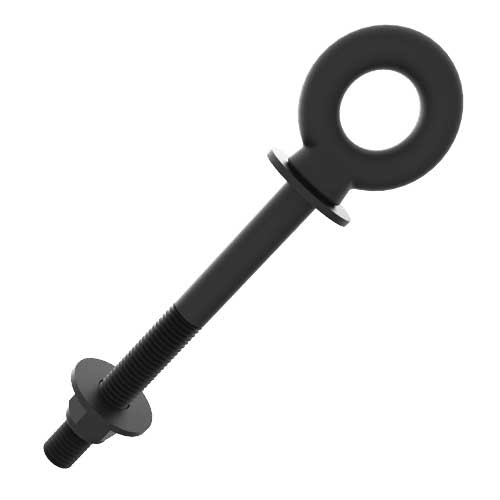

SAS-EB-KT SAS-EB-KT Eyebolt suspension kit 2200/1000
TCK-XXX Steerables™ Tilt Cable kit 220/100
