Threaded Pipe
1-1/2 inch Shedule 40 NPS

Adaptive provides kits of pre-painted, fixed length section threaded pipe and safety cables for use in vertical suspensions of audio and video equipment and other objects. Secure any of these pipe sections above to one of Adaptive’s heavy-duty ceiling mounts or strut channel adapters and a variety of adapters and mounts below.

1.5 inch Pipe Selection
Standard Features
Specifications
Dimensions
Optional Accessories
Downloads

1.5 inch Pipe Selection

1-1/2 inch Part #’sLengthShipping Weight
PIPE-1.5NPS-66″ Long Pipe
PIPE-1.5NPS-1212″ Long Pipe 4.14 lbs/1.88 kg
PIPE-1.5NPS-1818″ Long Pipe 5.46 lbs/2.48 kg
PIPE-1.5NPS-2424″ Long Pipe6.78 lbs/3.1 kg
PIPE-1.5NPS-3030″ Long Pipe8.1 lbs/3.7 kg
PIPE-1.5NPS-3636″ Long Pipe9.42 lbs/4.28 kg
PIPE-1.5NPS-4848″ Long Pipe12.1 lbs/5.48 kg
PIPE-1.5NPS-6060″ Long Pipe14.7 lbs/6.68 kg
PIPE-1.5NPS-7272″ Long Pipe17.34 lbs/7.88 kg

Standard Features

  • Pipe Sections are pre-threaded.
  • Body is powder coated black
  • Pre-measured safety cable included

Specifications

SPECIFICATIONSPACKAGE CONTENTS
Material: Schedule 40 Steel Pipe1 pc Pipe 1-1/2 NPS
Finish: Powder Coat1 pc Safety Cable
Color:Black1 pc Flat Washer 5/16″
 Design Factor: 7:11 pc Quick Link 1/4″
 Safety Cable: 285.7lbs / 129.8kg
 WLL: 2051lbs/932kg
 Shipping Weight: See Table

Dimensions

Optional Accessories

  • See ceiling mount datasheet
  • See strut attachment datasheet

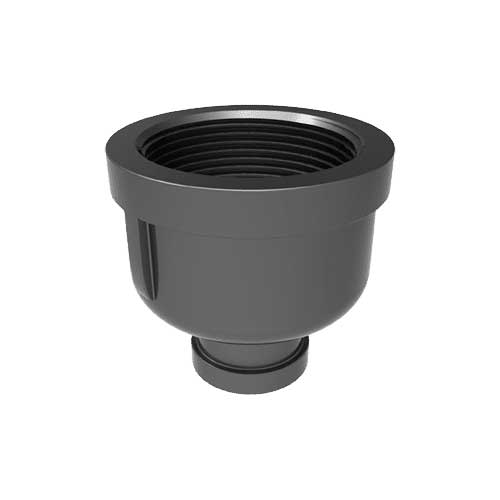

  • See pipe reducer

Downloads

Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader
