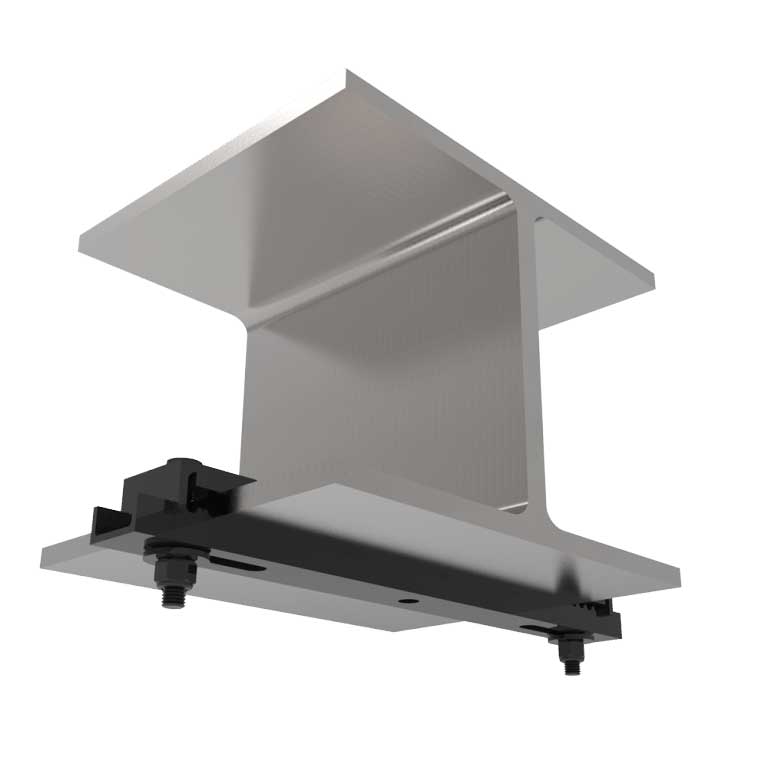

Beam Clamp – BC12-17-0
12 to 17 inch Open Hang Point

Provides a load rated overhead rigging point from structural I-Beams with flange widths ranging between 12” and 17” (304-431mm ). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.

NOTE: Recommended torque = 40-50 ft/lb

Downloads
Standard Features
Specifications
Dimensions
Optional Accessories
Videos

Downloads

Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader

Standard Features

  • Single center hang points for 1/2″ to 5/8″ dia. threaded rod.
  • Provides safe load-rated hang points
  • Clamps securely to beam flanges ranging from 12″ – 17″

Specifications

SPECIFICATIONS PACKAGE CONTENTS
Material: All Steel Components 1 pc 12”-17” Beam Clamp Channel
Width: 12” to 17” 2 pcs Locking Angle Plate
 WLL:980 lbs / 445 Kg.  2 pcs Flat Washer, 5/8”
 Finish: Powder Coat  2 pcs Nyloc Nut, 5/8-11
 Color: Black
 Design Factor: 5:1
Shipping Weight:7.29 lb / 3.3 Kg

Dimensions

Optional Accessories

  • See Threaded Rod datasheets
  • See Rigging components datasheets
