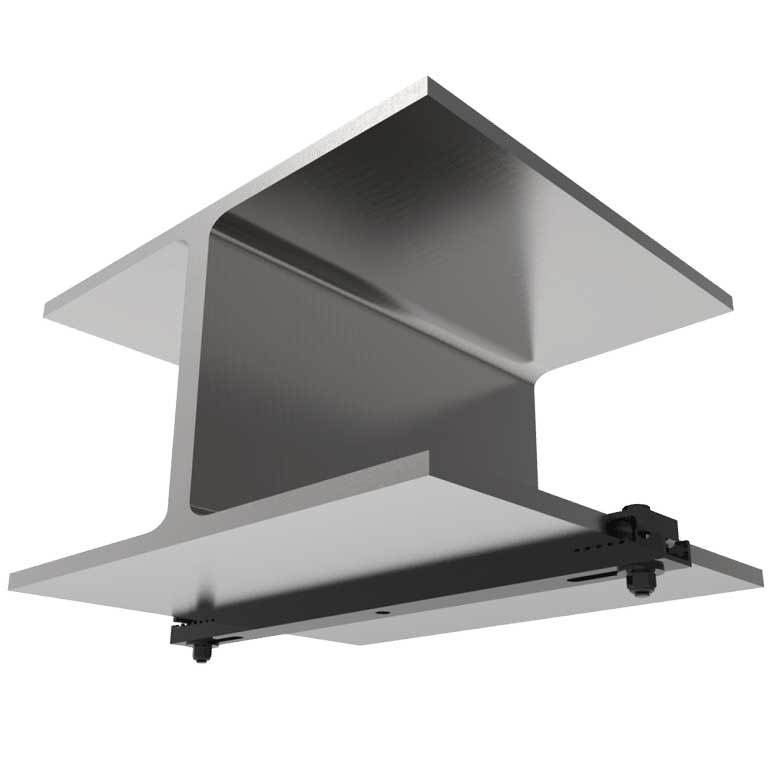

Provides a load rated overhead rigging point from structural I-Beams with flange widths ranging between 20” and 26” (508-660 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads with threaded rod from overhead and a hand wrench is all that is required to secure this clamp. *IMPORTANT – Beam flanges must be parallel to the floor to achieve the stated safe working loads.
NOTE: Recommended torque = 40-50 ft/lb
|Material: All Steel Components||1 pc 12”-17” Beam Clamp Channel|
|Width: 20” to 26”||2 pcs Locking Angle Plate|
|WLL:600 lbs / 272 Kg.||2 pcs Flat Washer, 5/8”|
|Finish: Powder Coat||2 pcs Nyloc Nut, 5/8-11|
|Design Factor: 5:1|
|Shipping Weight:12.25 lbs / 6 Kg.|
