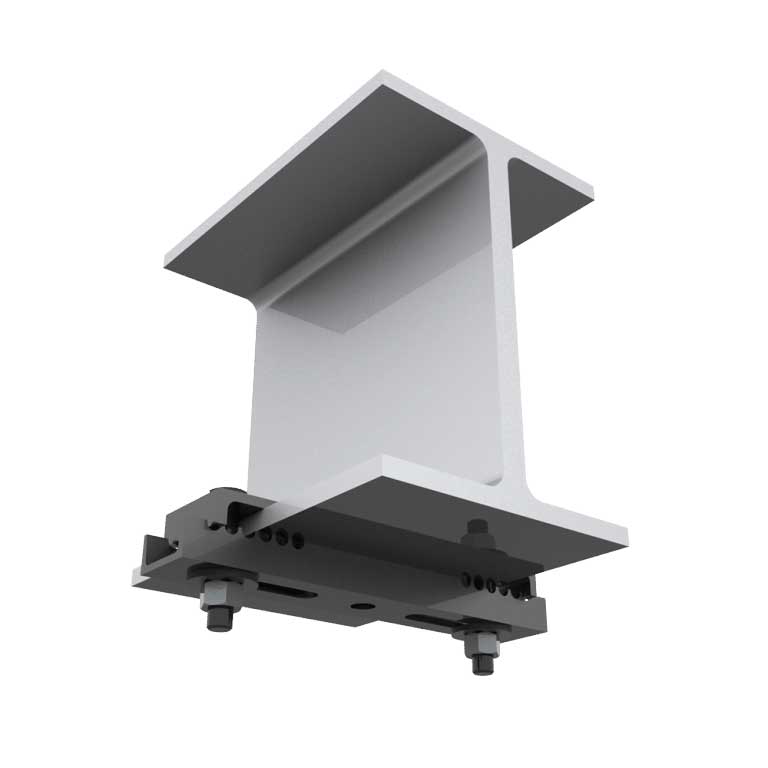

Beam Clamp – BC3-8-0
3 to 8 inch Open Hang Point

Use the BC3-8 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 3” and 8” (76-203 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.

NOTE: Recommended torque = 40-50 ft/lb

Downloads
Standard Features
Specifications
Dimensions
Optional Accessories
Videos

Downloads

Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader

Standard Features

  • Single center hang points for 1/2″ to 5/8″ dia. threaded rod.
  • Provides safe load-rated hang points
  • Clamps securely to beam flanges ranging from 3″ – 8″

Specifications

SPECIFICATIONS PACKAGE CONTENTS
Material: All Steel Components 1 pc 3”-8” Beam Clamp Channel
Width:(BC20-26-2) 20” to 26” 2 pcs Locking Angle Plate
 WLL:2100 lbs / 953 Kg.  2 pcs Flat Washer, 5/8”
 Finish: Powder Coat  2 pcs Nyloc Nut, 5/8-11
 Color: Black
 Design Factor: 5:1
Shipping Weight: 3.2 lbs / 1.45 Kg.

Dimensions

Optional Accessories

  • See Threaded Rod datasheets
  • See Rigging components datasheets
