Ceiling Stud Adapter

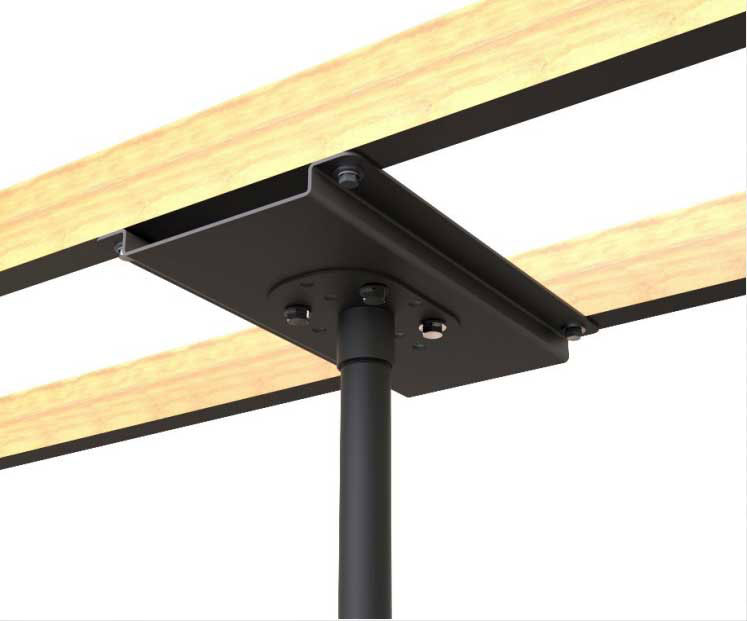

This stud adapter plate is used to bridge two structural studs offering a secure surface mounting for specific ceiling mounts as specified below. It bridges both standard 16” wood and metal construction wall stud spacing.

This stud adapter plate is made from rugged alloy steel with two double horizontal flanges for added rigidity. The assembly is finished with a bakedon powder coat paint.

The CP-16 may be mounted over dry wall, plaster and other ceiling materials, as long as it is firmly anchored into the structure. It can even be embedded inside the ceiling materials for a clean flush appearance.

Standard Features


Smiley face Datasheet
Smiley facePDF Reader

Standard Features

  • Mounts on 16” hole centers
  • Accomadates multiple ceiling mounts and attachments
  • Baked on powdered coat finish
  • Low profile design


Materials: Structural Steel Alloy 1 pc Ceiling stud adapter
Finish: Powder Coat Hardware for mounting to the ceiling structure is not included.
Color: Black texture
Pan Angle: 360 degrees
Color: Black
Pack Count: 1 unit / carton
Load Rating: 150 lb / 68 Kg. Meets the specifications of these selected mounts MP-500-NPT-CP, MP-500-NPT-GSA, MP500NPT-TA, MP-1.5NPS-CP
