GS-CART-500X500
500X500 Mobile Ground Support Video Wall System

This innovative LED ground support system includes everything you need to set up video walls. Quickly build up to 16 monitors wide and 9 monitors tall using 500 mm LED monitors. Or add the single column extension to assemble a 17 X 9. Loc-N-Load® sets up and packs up in half the time that it takes using conventional ground support methods.

The Loc-N-Load’s telescoping T-Base supports two vertical columns of monitors (up to 9 high). They connect to the next T-Base and to the next, etc. Each T-Base is equipped with three adjustable gliders as well as X and Z axis bubble levels so your crew can get the first tier of monitors locked into the same plane quickly.

The telescoping Back Brace connects to the back of the T-Base and extends upward to the 4th, 5th and 6th tiers as the T-Base extends outward. This provides a higher reach and an anchor point to the upper tier monitors as the video wall grows higher.

When dismantled, all of the T-Bases, Back Braces and Back Stays quickly stow onto the rolling cart, along with the single-column T-Base extension. Cart weight fully loaded is less than 850lbs.

Features
Loc-n-Load Components
Datasheets/Drawings
Video

Features

• Up to 16 x 9 video wall configurations • Aircraft pins for quick assembly
• Includes Single-column extension • Ballast anchor points and tie downs
• Fast set ups and dismantling • Rolling cart with 6” locking casters
• Light-weight aluminum construction • Fits inside delivery truck width-wise
• Telescoping two-column T-Base floor module • Cart top converts to table
• Telescoping Back Brace • Easy to use ballast calculator
• Adjustable floor levelers • Fork Lift Compatible
• Built in X and Z axis bubble levels • Supports 500mm & 500 X 1000mm tiles including Absen A3 Pro, A5, A7, X3, X5 & X7, M2.9, Unilumen 3.9, Unilumin U PAD, CreateLED, SquareV5 and PixLED video
• Rugged black powder coat finish

Loc-n-Load Components

Below are all of the components needed to assemble, break down and stow away a 17X9 ground supported LED video wall.

T-Base

GS-TBASE – Black

Telescoping T-Base – Black

Base support for Loc-n-Load LED ground support

T-Base

GS-TBASE – Silver

Telescoping T-Base – Silver

Base support for Loc-n-Load LED ground support

Back Brace

GS-BRACE – Black

Telescoping Back Brace – Black

Back brace for Loc-n-Load LED ground support

Back Brace

GS-BRACE – Silver

Telescoping Back Brace – Silver

Back brace for Loc-n-Load LED ground support

Back Stay

GS-BACKSTAY – Silver

Back Stay – Silver

Connects back brace to LED tiles.

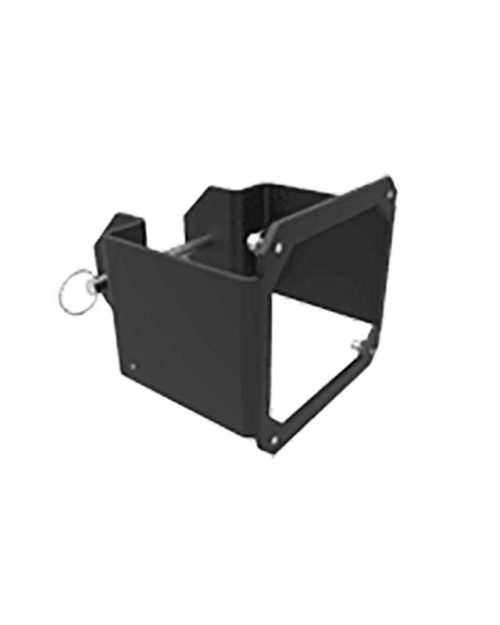

Back Stay

GS-BACKSTAY – Black

Back Stay – Black

Connects back brace to LED tiles.

Column Extension

GS-T-BASE-EXT – Silver

T-Base Extender – Silver

Adds a single column of LED tiles to T-Base.

Column Extension

GS-T-BASE-EXT – Black

T-Base Extender – Black

Adds a single column of LED tiles to T-Base

LED Tile Adapters

Model Specific

LED Adapter Plates – Black

Choose from 14 specific LED model adapter plates.

LED Tile Adapters

Model Specific

LED Adapter Plates – Silver

Choose from 14 specific LED model adapter plates.

Front Stabilizer

GS-T-BASE-SKI – Black

Front Stabilizer Ski – Black

For use with larger walls and for outdoor windy environments.

Front Stabilizer

GS-T-BASE-SKI – Silver

Front Stabilizer Ski – Silver

For use with larger walls and for outdoor windy environments.

The Cart

GS-CART – Silver

Ground Support Cart – Silver

Load all components for 16X9 LED video wall onto this mobile cart.

The Cart

GS-CART – Black

Ground Support Cart – Black

Load all components for 16X9 LED video wall onto this mobile cart.

Work Table

GS-CART-TBL – Silver

Work Table/Cart Cover – Silver

The GS-CART-TBL serves as a cover for the cart as well as a work table.

Work Table

GS-CART-TBL – Black

Work Table/Cart Cover – Black

The GS-CART-TBL serves as a cover for the cart as well as a work table.

Ladder

GS-LADDER-5 – Black

Ladder/Short Wall Support – Black

The GS-LADDER serves as a short wall support or a ladder to access the LED tiles.

Ladder

GS-LADDER-5 – Silver

Ladder/Short Wall Support – Silver

The GS-LADDER serves as a short wall support or a ladder to access the LED tiles.

Blank Tile – 500X500

GS-BT-500X500

Blank Tile/Spacer

Use the blank tile spacer to raise up LED video wall to increase visibility.

Blank Tile – 1000X50

GS-BT-1000X500

Blank Tile/Spacer

Use the blank tile spacer to raise up LED video wall to increase visibility.

Compatible LED Tile Models

Absen LED Ground Support, Create LED Ground Support, Square V5 LED Ground Suppor, Unilumin LED Ground Support


Absen A3 Pro

LED Ground Support



Absen A5

LED Ground Support



Absen A7

LED Ground Support



Absen DV Series

LED Ground Support



Absen X3-X7

LED Ground Support



Absen XV Series

LED Ground Support



Absen M2.9

LED Ground Support



Blizzard Iris Series

LED Ground Support



Create LED

LED Ground Support



INFiLED QE Series

LED Ground Support



PixelFLEX Flex Tour

LED Ground Support



Square V5

LED Ground Support



Unilumin 3.9

LED Ground Support



Unilumin U PAD III

LED Ground Support
