PM-010
Vertical & Horizontal Indoor Pole Mount

This is a universal pole adapter that adapts the MultiMount and U-Series speaker mounts to poles and columns using stainless steel sign banding.

When mounted vertically, the PoleStar® grips to 6” and larger diameter poles and columns. When mounted horizontally, it grips to 4“ and larger diameter poles and columns.

PoleStar is constructed from tough alloy steel to assure reliable permanent installations. it comes in a standard black paint finish over zinc plate undercoating for indoor and outdoor use. Band kits are available separately.

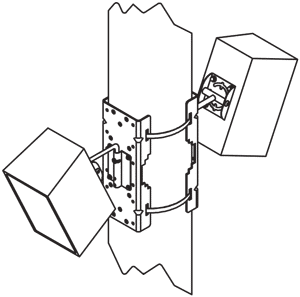

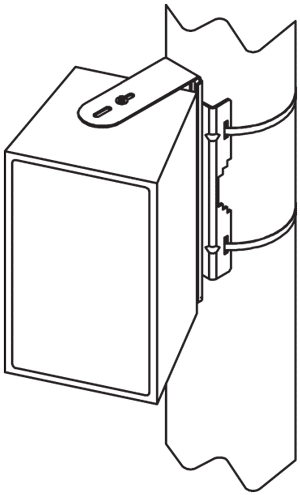

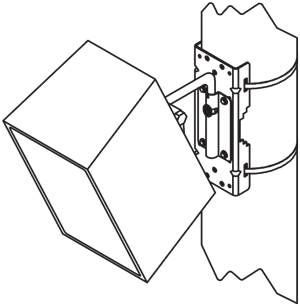

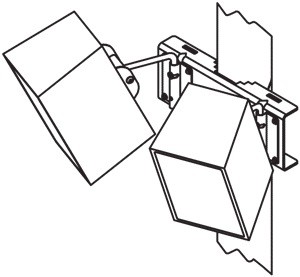

Vertically Mounted Horizontal – U-bracket Vertically-CCTV

Standard Features
Specifications
Dimensions
PM-010 Applications
Optional Accessories
Downloads

Standard Features

  • Adapts MultiMount speaker mounts to poles and columns
  • Adapts many U-Series speaker mounts to poles and columns
  • Adapts SocketMounts to poles and columns
  • Adapts Steerables wall mounts to pole and columns
  • Zinc plate undercoating for weather resistance
  • Available in black paint finish
  • Universal hole pattern fits many yoke mounts, speaker
    mounts and U-Brackets

Specifications

Material: Structural Steel Alloy
Finish: Powder coat paint over zinc plate
Color: Black powder coat
WLL*: 75 lbs./34 kg. total accumulated load
Design Factor: 10:1 ratio
Net Weight: 3 lbs./1.4 kg.
Shipping Weight: 4 lbs./1.8 kg.
Pack Count: 1/carton
*WLL = Working Load Limit

Dimensions

PM-010-Drawings

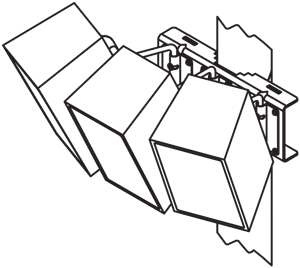

PM-010 Applications

Optional Accessories

Description Part Number Ship Weight Working Load* Safety
Safety Anchor Mount PM-SAFETY-6DOWN 2.8 lb. / 1.3 Kg 500 lb. / 227.3 Kg 10:1
18” Safety cable with shackles SC-188-18-SS .55 lb. / 25 Kg 840 lb. / 381.8 Kg 10:1
24” Safety cable with shackles SC-188-24-SS .75 lb. / 34 Kg 840 lb. / 381.8 Kg 10:1
48” Safety cable with shackles SC-188-48-SS 1.05 lb. / 48 Kg 840 lb. / 381.8 Kg 10:1
72” Safety cable with shackles SC-188-72-SS 2.00 lb. / .91 Kg 840 lb. / 381.8 Kg 10:1
20″ SS-Band Kit / pair PM-BAND-20S 2.00 lb. / .91 Kg 100 lb. / 45.5 Kg 10:1

Downloads

Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader
