PM-R6
Community Basshorn Pole Mount

Adaptive’s ultra-rugged 2-piece speaker mount is designed to secure and aim Community Pro’s oversized R6 stadium horn outdoors from walls, roof tops and light poles. Place this long throw, wind-rated stadium horn almost anywhere. The mount’s outer cage secures to structural walls, light poles measuring 10” diameter or more and even bolted to roof tops.

This versatile super-strong mounting design is produced from structural alloy steel then treated with a long lasting outdoor rated galvanized finish. Its 2-piece construction makes for an easy assembly and its components install quickly and efficiently. Note that the inner frame attaches directly to the speaker enclosure’s front, back, top and bottom anchor points then rotates within the outer mounting cage frame from the speaker’s center of gravity. This makes the down tilt adjustment of this 440 lb. speaker cabinet effortless. Contact customer service for more details.

Downloads
Standard Features
Specifications
Dimensions
Optional Accessories
Videos

Downloads

Smiley face
Datasheet
Smiley face
Installation
Smiley face
PDF Reader

Standard Features

  • Designed exclusively for Community R6 Bass Horns
  • 90° of effortless tilt adjustment
  • Rated for outdoor use
  • 2 piece simple assembly/installation

Specifications

 SPECIFICATIONS PACKAGE CONTENTS
Material: Structural Steel 1 pc Pole Mount Bracket Assembly
Finish: Galvanized Steel 1 pc Pole Mount Bracket Assembly Kit
Color: Silver  1 pc Speaker Cage Assembly
Pack Count: 1 unit/cartin  1 pc Speaker Cage Assembly Kit
WLL: 400 / 181 Kg.  1 pc Front Support Assembly
Shipping Weight: 500 lbs / 226.75 Kg.  1 pc Hardware Kit

Dimensions

Optional Accessories

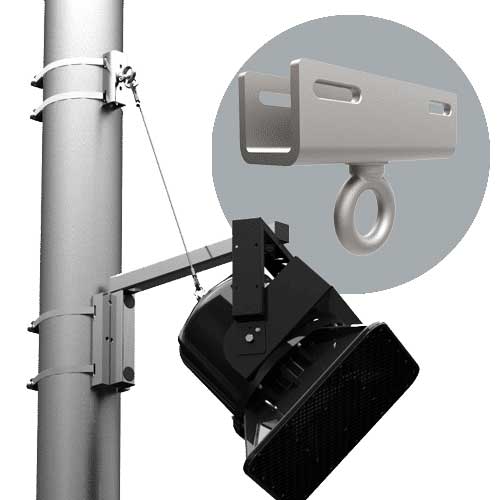

  • Safety Cables
