Top Grid

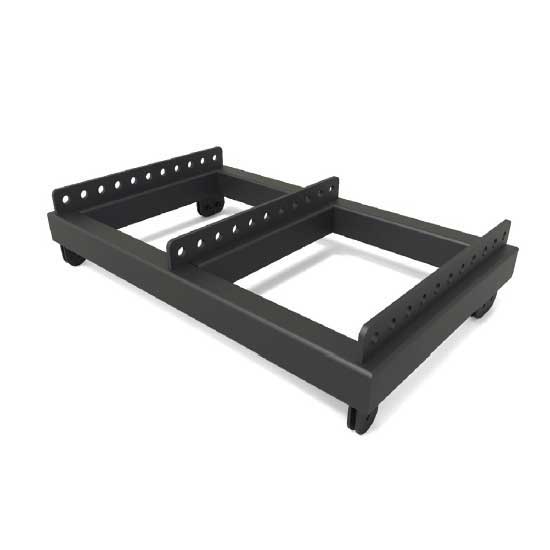

The RS-ASB-TG Top Grid assembly will fly up to 10 ASB 4128, ASB 6128 or ASB 7128 sub woofers into a line array configuration. Simply secure the front and rear speaker Straps Kits of the top speaker cabinet permanently underneath the Grid’s four load-rated interlocks. Rigging Rails on the left and right sides of the Grid’s frame allow the entire cluster to be suspended and angled via multiple front-to-back rigging points. Place the cluster into a dead hang or tilt it down, up to 10° degrees, in a cardioid scenario. Two additional hang points are included to make the installation easier, one at the front center and the other at the rear center to be used for hoisting the cluster into position so that the permanent suspension cables can be secured. This Top Grid is a single steel frame precisionwelded assembly that comes in a tough zinc enriched black powder coat finish. Fly sub arrays behind arrays Universal Grid line RS-56X168-UG. See data sheet for more details.
