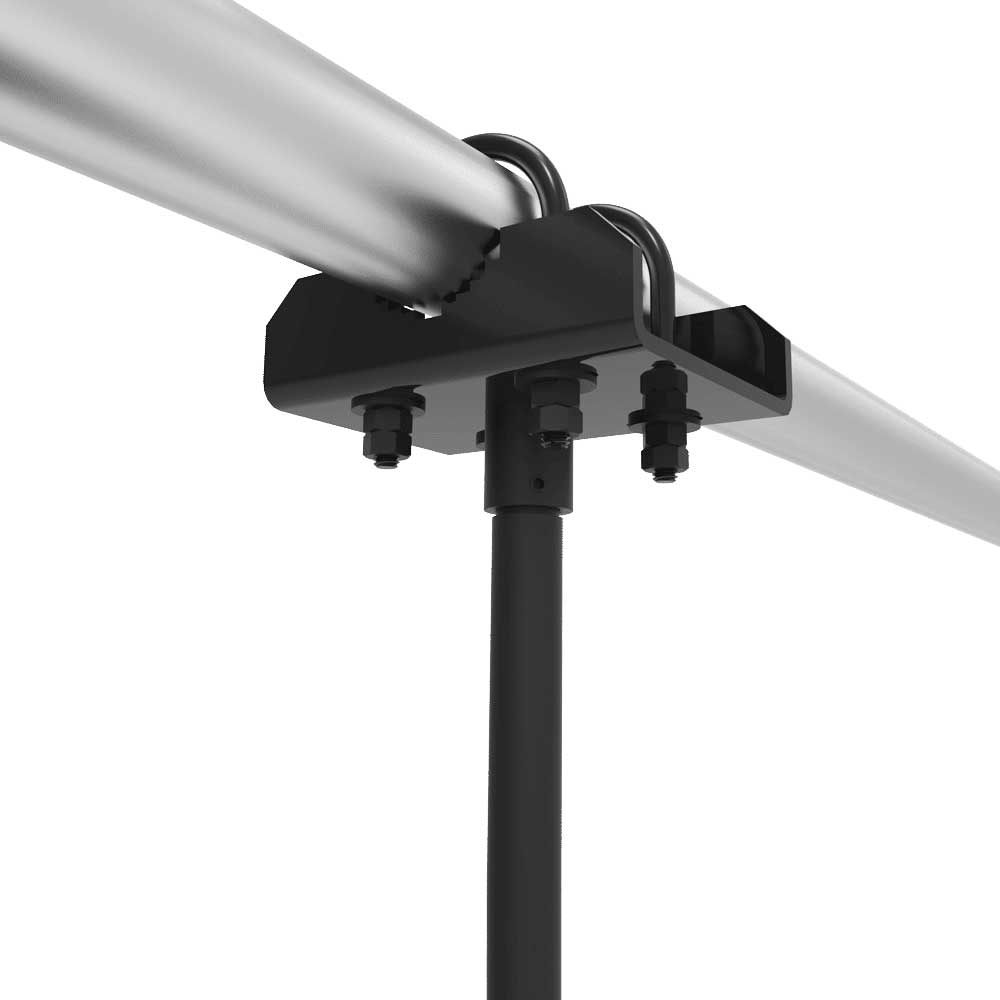

Saddle Bracket Truss Mount PS-500NPS-2
140lb Truss Mount

Adaptive Saddle Truss Mounts provide a load rated vertical hang point from overhead truss and offers a secure and load rated suspension point suspending objects with 1-1/2” diameter schedule 40 pipe (NPT & NPS). Saddle Mounts attach directly to box trussing, lighting truss and other theatrical pipe applications with cord diameters measuring between 1-3/8” OD” to 2-1/2” OD” and provide a vertical connection for 1-1/2” schedule 40 pipe. The Saddle Mount kit includes the powder coated mount with built in set screw lock, two U-Bolts and related hardware.

Ideal applications include but are not limited to performing centers, auditoriums, theatres, studios, theme parks, retail centers and rental and staging events.

Standard Features
Specifications
Dimensions
Optional Accessories
Downloads
Videos

Standard Features

  • Provides load rated suspension point for .5” pipe
  • Accomodates 2” dia pipe & box truss
  • Powder coat finish
  • Hardware included

Specifications

SPECIFICATIONSPACKAGE CONTENTS
Material: Structural Steel Alloy1 pc Saddle Bracket Assembly
Color: Black1 set U-Bolt Kit
Finish: Powder Coat
WLL:140 lbs. (63 Kg)
Design Factor: 5:1 ratio

Dimensions

Optional Accessories

  • Pipe thread reducer – PIPE-1.5-500-PR
  • Pipe Extensions – 12” – 72” lengths
