SAS-200-WM
200lb Indoor Wall Arm Mount

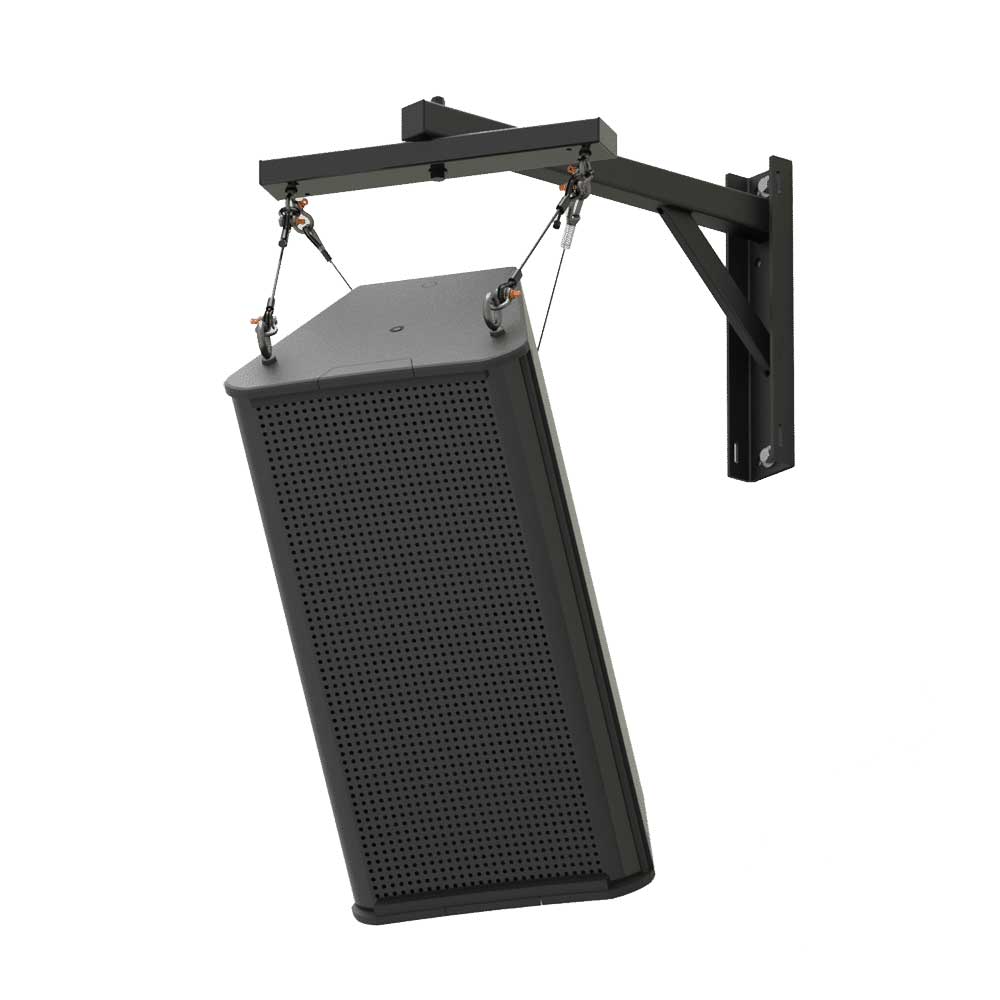

The Steerables® SAS-200-WM suspends and aims loudspeakers from walls and other vertical structures. Loudspeaker cabinets equipped with suspension or mounting points can be suspended and aimed with unprecedented ease and precision. Pan and tilt adjustments can be made or remade within seconds.

Ideal applications include permanently installed loudspeakers in churches, schools, gymnasiums, auditoriums, theme parks nightclubs, bars and restaurants.

The Steerables® unique Cross-Arm steering mechanism provides up to 360 degrees of pan control while tilting is achieved either through the addition of a standard Allen
Products U-Series bracket or Steerables® Tilt Cable Kit (see respective
data sheets for more details).

This all structural steel alloy assembly is coated with a baked-on black
textured powder coat finish. It comes in just two ready to mount sections
and will support loads of up to 200 lbs./91 Kg. with testing to over
ten times its normal working load.

Standard Features
Specifications
Dimensions
Optional Accessories
Downloads
Videos

Standard Features

  • Suspends riggable loudspeakers from walls and other vertical surfaces
  • Unique cross arm steering mechanism offers 360° of pan control
  • Significant reductions in installation and planning time
  • Accommodates standard Allen Products U-Series brackets and Steerables® Tilt Cable Kits
  • Minimal mounting surface area required

Specifications

Material: Structural steel alloy tube and plate1 pc. Suspension Arm
Finish: Powder Coat1 pc. Cross Arm
Color: Textured black1 pc. Hardware Kit
Pan Rotation: 360° horizontal swivel max
WLL: 200 lbs./91 kg.Hardware for mounting to the wall structure is not included.
Design Factor: 7:1 ratio based on10:1 ratio based on ultimate yield point
Shipping Weight: 25 lbs./11.3 kg.
Pack Count: 1 unit/carton
