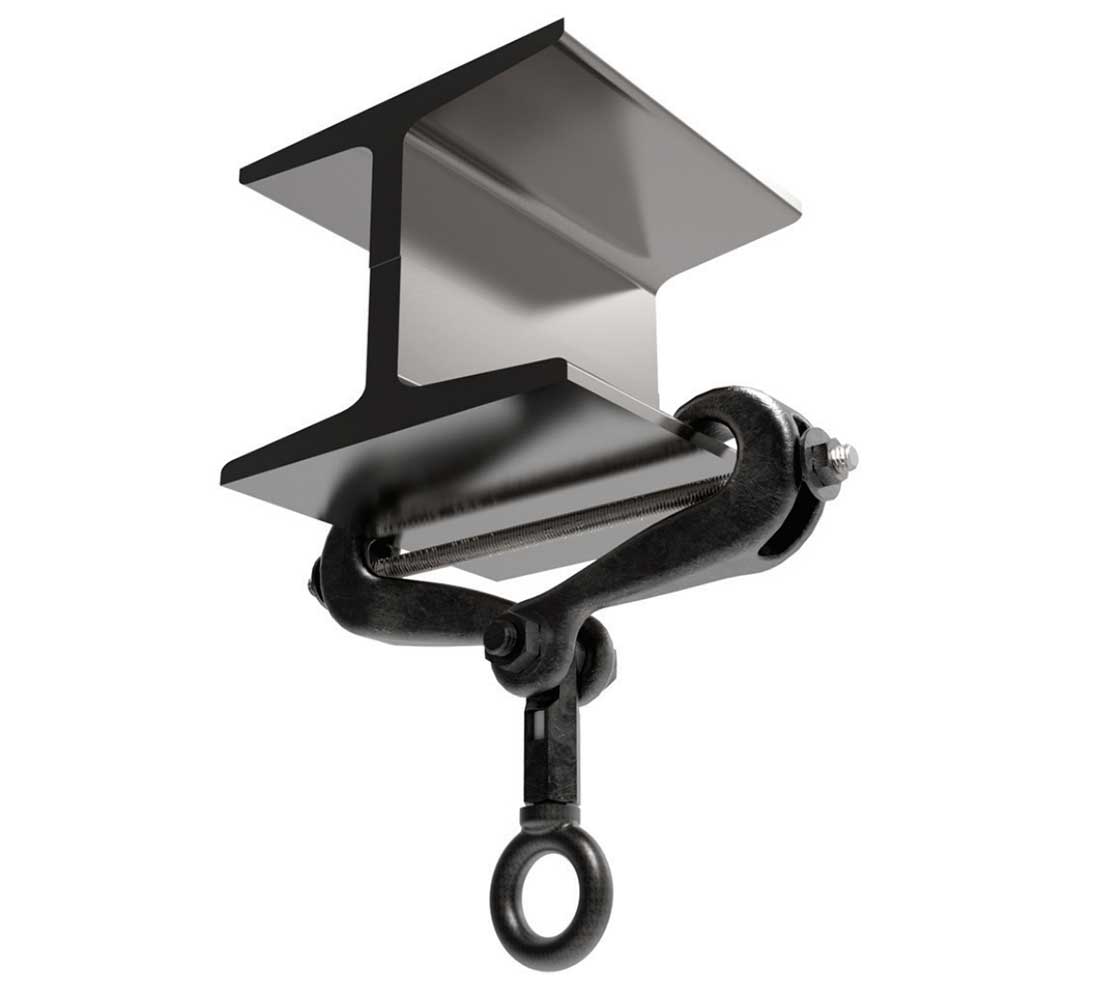

BC3-7-J
Scissor Style Beam Clamp

Creating suitable overhead structural suspension points for rigging systems can be difficult so using the building’s own structure can provide more options for the installer. Standard, pre-engineered beam clamps attach to the building’s beam structure and offer an easy, safe and predictable method of suspension. The half inch eye bolt shown below Eyebolt is sold separately.

Category: Tag:
Downloads
Standard Features
Specifications
Optional Accessories

Downloads

Smiley face Datasheet
Smiley face Installation
Smiley facePDF Reader

Standard Features

  • Scissor clamps stronger as the applied load is increased.
  • Infinite width adjustments from 3” – 7”
  • Accomadates ½-13 threaded rod or eyebolt for suspension.
  • All grade 8 hardware
  • Ideal for permanent or temporary suspensions.

Specifications

SPECIFICATIONS PACKAGE CONTENTS
Part Number: BC3-7-J
Materials: Stainless and Galvanized Steel Components
 Width:/strong> 3” to 7” / 76mm to 178mm
 Color: Grey
 Design Factor: 5:1
Working Load: 1130 lb. / 514 Kg. WLL (Vertical)
45 DEG. MAX WL: 620 lb. / 295 Kg.
Do not side load beyond 45°

Optional Accessories

  • See Threaded Rod Datasheet
  • See Strut Accessories Datasheet
  • See Eyebolt 3.0 “- 7.0”
